COMPO 3400HP

Reliable & efficient tea bag machine

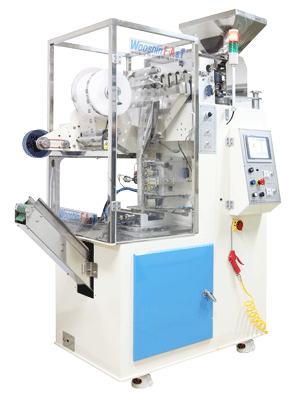

COMPO3400HP wooshinfa tea bag machine
Producible Tea Bag Types

Pyramid with tag

Pyramid without tag

Rectangular with tag

Rectangular without tag

Applicable Material

Nylon

Bio-degradable

Non-woven

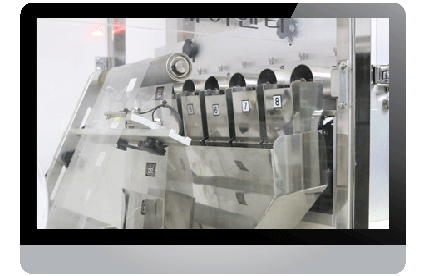

Precise Scale

Eight precise load cells can meet your industries sever standards and keep you away from losing your material. (changeable into a auger filler, volumetric filling system)

Reliable and Efficient

Simple and tough structure makes it possible to be reliable and to easy to manage the inside of the machine.

Neat Cutting

We have been producing ultrasonic parts since we founded. And the seasoned tech can cut and seal the filters beautifully.

Completely Controllable

It can control every single detailed move of the machine on the PLC touch screen, which can increase the productivity.

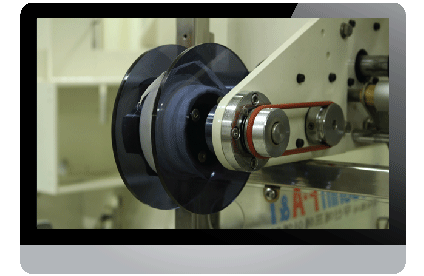

Clean Work Space

The machine vacuums and rewinds the remnants of filter.

Specification

■ Capacity: 80 Tea Bags (eight load cells)
■ Sealing method: 3 side sealing and cutting by ultrasonic
■ Packing material: Nylon, Unwoven and Biodegradable filters
■ Tea bag size
-Triangular:  50-80mm(each edge)
-Rectangular:  50-60(L) x 40-80(W)

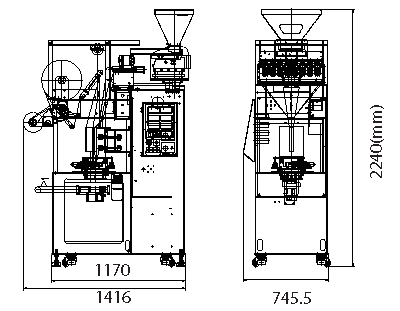

■ Dimension: W1416 x D745.5 x H2240mm
■ Weight: 350kg Electracity 1P/220V/2.0kW
■ Air consumption: 300lit/min., 5~6kgf/cm2



Download Catalog

For more informationContact
